Product Details:
|
| Product Name: | Hydraulic Pump (high And Low Pressure) Pressure Sensor | Applicable Models: | SH200 SH210 SH240 SH300A3 A5 |
|---|---|---|---|
| Condition: | Nwe | Used For: | Check Pressure Value |
| Warranty: | 3-6months | Applicable Industries: | Machinery Repair Shops/Construction Works/Energy & Mining |
| Transportation: | Sea freight/air Freight | Production Place: | Guangdong, China |
| Notice: | Sumitomo Excavator Hydraulic Pump (high And Low Pressure) Sensor | ||
| High Light: | Sumitomo Excavator Pressure Sensor,SH200 Excavator Pressure Sensor,KM16-P03 |
||
Sumitomo Pressure Sensor Excavator SH200 SH210 SH240 KM16-P03 KM15-P02
product details:

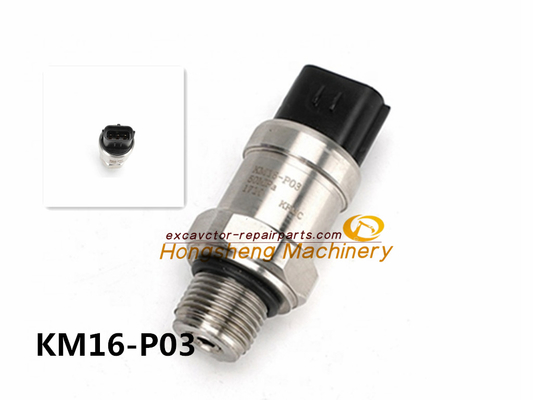

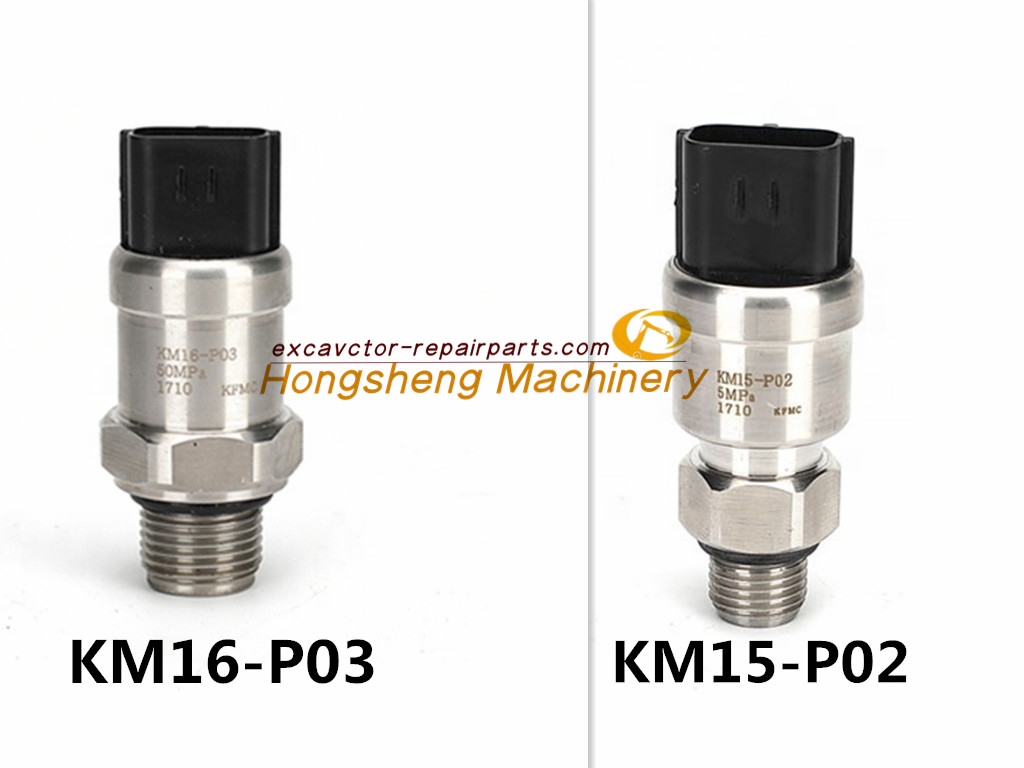

| KM16-P03 | High pressure sensor |

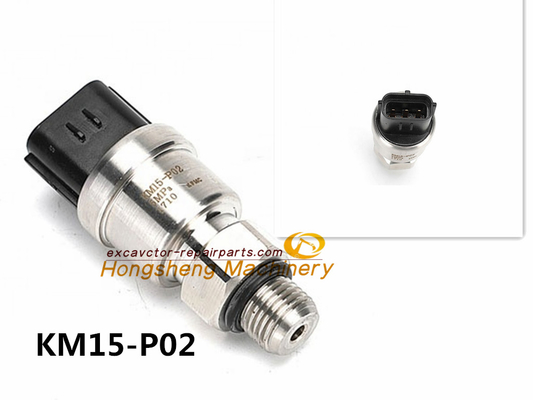

| KM15-P02 | low pressure sensor |
| Applicable models | SH200 SH210 SH240 SH300 SH350/A3 A5 |
| warranty period | 3-6 months |
| delivery time | In stock 1-3 days Out of stock 3-7 days |
| Related sensors | Hydraulic pump sensor/(high and low pressure) sensor/pressure sensor/water temperature sensor/oil temperature sensor/distribution valve sensor/pressure switch/fuel sensor/camshaft sensor/relay, etc... |
The measurement range of the pressure sensor is 0~100MPa, the range ratio is 10:1, and the accuracy is 1% FS. What is the error when the range is 0~100MPa and 0~50MPa respectively?
The basic errors of 0~100MPa and 0~50MPa are both ±1MPA, but the percentage accuracy errors are 1% and 2% respectively, which is the same as the increase in the range ratio, so the selected range of the sensor may be close to the actual measurement range. , preferably about 70% of the commonly used range
The role of the low pressure sensor:
In electromechanical control, the role of the low pressure sensor is very important, and it is the basis for the control of pump flow control, spool control, proportional valve control, etc.
After the operating handle is completely turned over, the pilot pressure oil is output twice, and it leads to the multi-way valve spool when the low pressure sensor senses. The low pressure sensor detects the pilot pressure of the operating handle and sends an electronic signal to the electromechanical controller (CPU). ) to calculate, and send the calculation results to the hydraulic pump regulator, the swash plate inclination of the hydraulic pump changes, and the output flow of the hydraulic pump also changes; the electromechanical controller senses the driver's hand movement through the signal of the low pressure sensor, to perform corresponding operations.
The role of high pressure sensor:
In electromechanical control, high pressure sensor pump flow control, operation control, confluence control, etc.
Other models of excavator related sensor models:
| JCBExcavator ,sensor | JCB160, JCB220, JCB240, JCB330, JS360, B75/76/80 etc ...... |
| Volvo excavator ,sensor | EC55B EC140, EC160B, EC210B,EC240B,EC290B,EC360B,EC460, EC700B etc... |
| Kobelco excavator,sensor | SK45SR,SK60SR,SK100,SK120,SK200,SK210,SK230,SK250,SK260,SK300,SK330,SK350,SK460,【-5-6-8】etc.... |
| CAT excavator ,sensor | CAT305.5,306,307,308,311,312,314,315,320,325,320,330,349,345,【C B D】etc.... |
| Hyundai excavator ,sensor | R360-7, R320-7, R290-7, R210-7, R170, R140-9, R170W, R130-7,R145-9, R450-7, R220-9, R160-3 etc |
| Sumitomo/Case Excavator,sensor | SH/CASE 75U,75X-3,75X-3B,80-3B,120-3,120-5,125X-3,130-3,135X-3,210-5,210A5,210LC-5,200LC-3,200-3,200HD-3,240-3,225X-3,350HD-3B,330LC-3,330-3,350-5,350-3B,400-3,450HD-3B,460HD-5,700LHD-3B,700LHD-5,800LHD-3B,etc..... |
| Komatsu excavator ,sensor | PC60,100,120,130,160,200,210,220,230,300,360,400,450【-5-6-7-8】 PC650LC-8R PC650LCCSE-8R,PC850-8,PC850SE-8,PC1250-7,PC2000-8,PC3000-6,PC4000-6,PC5500-6,PC8000-6,etc....... |
| Doosan Daewoo Excavator,sensor | DH/DX 55,60,65,75,130,150,200,215,220,225,230,260,300,305,380,450,500,【-5-7-9C-LC】etc....... |
| Hitachi excavator,sensor | ZAX120-3,ZAX200-1,ZAX230,ZAX330,ZAX450-3,ZAX470LC-5G,ZAX490,EX100-1,EX120,EX200-5,EX300-2,EX300-3,EX300-3 etc..... |
Categories of Excavator Parts We Produce:
Shipping/Warehouse:
We offer accessories from the following brands:
Our company has several packaging methods, mainly neutral packaging. The price of neutral packaging is relatively higher
discount. For other packaging, please contact us in advance
